HK-358 Low Level Sodium Analyzer

Listed: 2017-04-04 15:17:05
Manufacturer: HKY Technology CO.,Ltd
Origin Country: China

We have a lot product. It will show in category or by sub category.

Price Rp. CALL

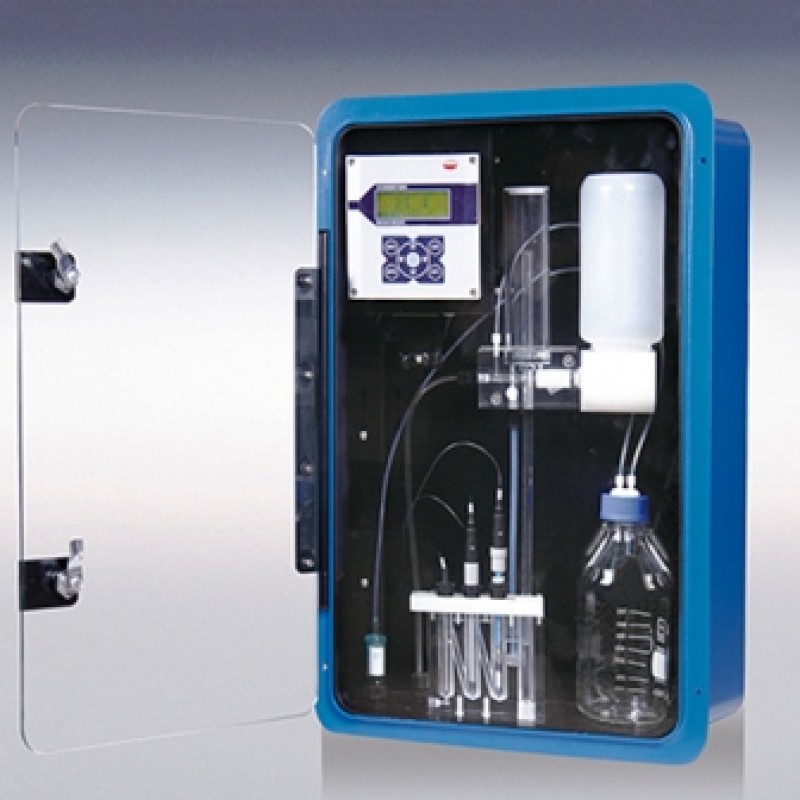

HK-358 Low Level Sodium Analyzer

Supplies categoryï¼šSodium Analyzer
Material codeï¼šHK-358
Manufacturerï¼šHKY Technology Co.,Ltd.

Introduction

Applications:

. Power
. Chem or Petrochemical
. Pulp and Paper
. Semiconductor
. Ultra pure water anakysis,boiler feed waterion exchange breakthrough,steam analysis,drum boiler water

Feature

. Sensitivity to ppb range
. Advanced embedded MCU technology,SMT and integrative design
. Panel mount,aluminum enclosure
---anti-interference
. 192×64 lattice LCD display
. User interface language:English
. Simultancous display of multtiparameters
. Automatic or manual temperature compensation
. Two analog outputs and two alarm relay outputs
. CAN bus communication
. Large datalog of previous measurements and trend curve trackable
. Universal power supply for worldwide operation(100~240)V
. Low reagent consumption
. Fast response,accurate measurement
---ease-of-use with minimal maintenance

Technique Data

TRANSMITTER
Measurement Range	(0.00 to 9.36)pNa, 0.01μg/L to 23.0g/L, (-1.000 to +1.000)mV
Resolution (min)	0.01pNa, 0.01ug/L, 0.1mV
Accuracy	0.01pNa, 1character, ±0.5mV (during ±10oC of the calibration temperature)
Stability	±0.01pNa/24h, ±1character/24h, ±0.5mV/24h
Analog Output	(0~10)mA or (0~20)mA or (4~20)mA,two isolated outputs
Output Accuracy	±1%F.S
Max.load Resistance	≤800W
Power Supply	(100~240)VAC, (45~65)Hz
Power Consumption	≤8W
Insulation Strength	Power to ground 1500V, no flying arc in 1 min
Alarm Output	Two alarm relays. Each relay can be configured as: high and low concentration alarm, high and low temperature alarm. One relay can be simultaneously selected by two alarms. If anyone of the two alarms occurs, it will be activated.
Communication	CAN Bus (option)
Data Logger	Record measurement values, history events and calibration results
INSTRUMENT
Measurement Range	(1.00-8.00)pNa, 0.23ug/L-2300mg/L
Resolution (min)	0.01pNa or 0.01ug/L
Accuracy	±0.02pNa or ±0.5ug/L ( the larger one), whichever is greater (between ±10oC of calibration temperature)
Response Time (T90)	≤2 min at 25oC
Temperature Sensor	Pt1000
Temperature Range	(0.0 to 99.9)oC
Temperature Accuracy	±0.5 oC
Temperature Compensation	(0.1 to 60.0)oC (auto or manual)
Calibration Method	Sample calibration and standard solution calibration
Overall Dimension (mm)	450(L) × 690(W) × 190(D)
Cutout Dimensions (mm)	410 × 645
Weight	19kg
Sample Condition	Temperature: (5 to 50)oC Pressure: (50-300)KPa Flow: (6-40)L/h Solid contents in sample: ≤5mm (no gel and grease)
Ambient Temperature	(5 to 45)oC
Ambient Humidity	≤90%RH (no condensation)
Storage Temperature	(-25 to 55)oC (above 0oC for electrode)
Warranty	18 months(from date of acceptance)

Analyzer	1Piece	Reactive solution	1 bottle
Measuring eletrode	1Piece	Disposable injector	1Piece
Reference electrode	1Piece	Key	1Piece
Standard solution	2 bottle
